Solar Reflective Flat Glass

Our low icon glass is an extra clear glass which is valued for its attractive appearance and optical qualities. The low iron content produces a higher light transmittance and a reduced green tint inherent of other glasses.

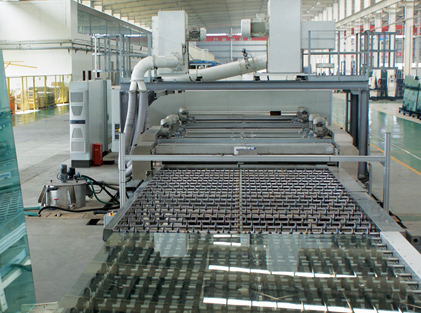

Solar reflective glass is produced by coating one or more layers of metal or compound thin film on float glass by way of vacuum magnetron sputtering. The major function of the coating is to control the reflection, transmission and absorption of direct solar radiation at desirable ratio, and to produce the needed reflective colors.

The energy emitted from our Sun is referred to as solar energy or radiation. Solar control with reflective and low-E coated glass in this text makes reference to its ability to control or reduce the sun’s direct heat energy through the glass. Solar control also refers to the ability of a glass to reduce visible light and UV transmittance. Both reflective and low-E coated glass perform a solar control function by limiting to various degrees the transmittance of direct heat energy, visible light and UV transmission.


  • Effectively limit direct solar radiation transmission
  • Versatile reflective colors and excellent decoration effect
  • Excellent sight shielding effect on the indoor objects and structures
  • Proper visible light transmittance and reflectance
  • Lessen transmission of ultraviolet

Product Categories

  • Composite glass : besides monolithic glass products of different types and specifications, CSG can also provide products such as laminated coated glass, tempered coated glass, coated insulating glass as well as others
  • Bendable and post-temperable solar reflective glass: in addition to common solar reflective glass, CSG can also produce bendable and post- temperable solar reflective glass
  • Color: silver gray, gray, blue gray, blue, lake blue, gray green, green, blue green, gold, tawny and champagne. Each color may vary in lightness to satisfy different design requirement

Production Range

  • Standard glass dimension (mm): 2440×3660, 2400×3300, 2100×3300
  • Maximum dimension (mm): 3300 x 6000
  • Minimum dimension (mm): 300 x 800
  • Thickness (mm): 3, 4, 5, 6, 8, 10, 12, 15, 19
  • The other thicknesses and sizes may be available upon request.
